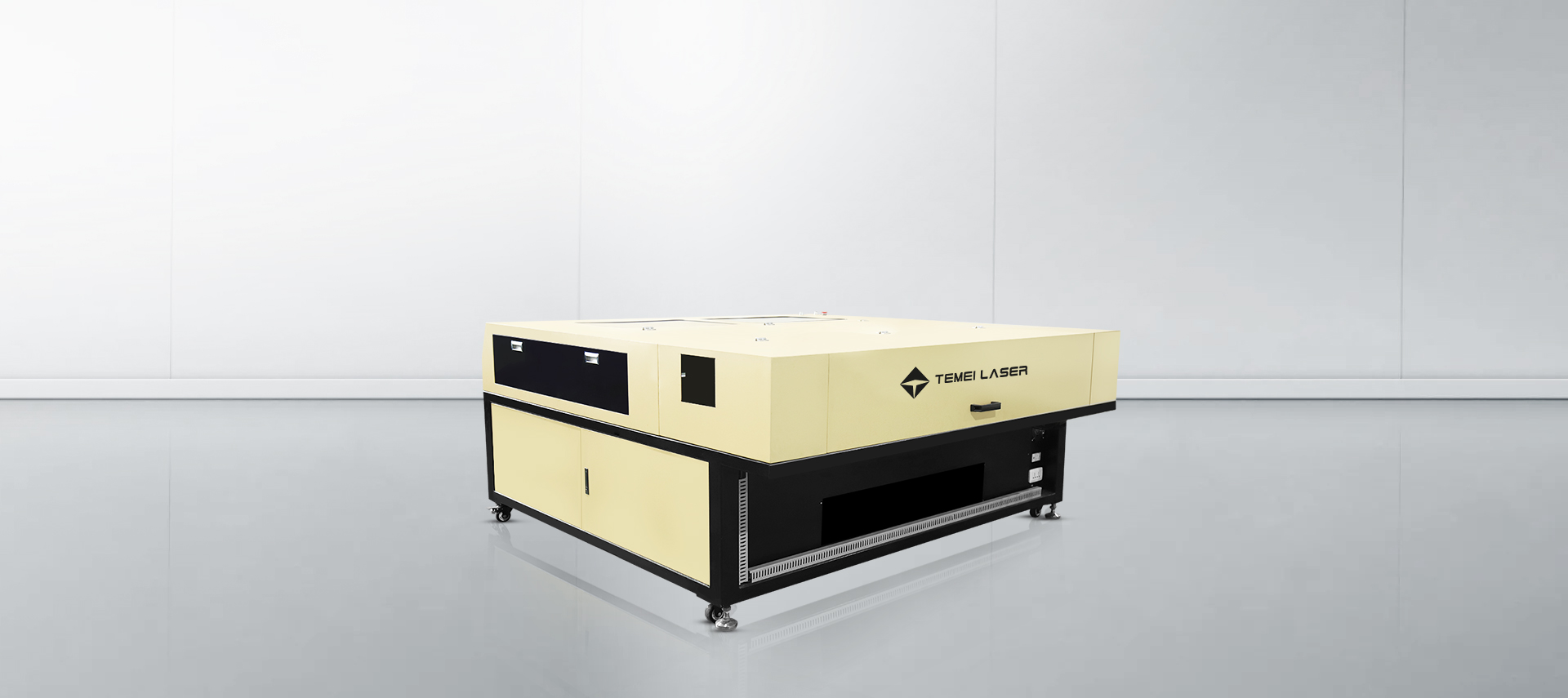

1812 Screw Laser Cutting Machine (Double Head)_Shenzhen TEMEI Machinery & Equipment Co., Ltd.

CO2 Laser Cutting Machine

Inquire Now

Lathe bed

The bed is made of 5mm square tubes that are fully welded and subjected to high-temperature tempering treatment. The heavier the machine, the smaller the cutting error.
Mitsubishi servo

It adopts high-performance Japanese Mitsubishi servo motor to achieve closed-loop control of position, speed and torque. It has good high-speed performance and the RPM can reach 2000~3000; allowing you to create value every second.
TBl screw.g uide rail .slider

High-quality screw and guide rail for more precise cutting. The low-noise slider runs more quietly, stably and has a long service life.
Design of Aluminum Casting Machine Base

Excellent cast aluminum machine base design, the surface is smoother after passing through thegantry milling machine, reducing the impact of vibration and making the cutting effect more perfect.
Host components

Aviation grade aluminum crossbeam

25%

Structural strength improvement

30%

Weight reduction

*The data was analyzed in the
laboratory and obtained.
Design of Aluminum Casting Machine Base

The 3mm sheet metal thickness makes our machine not only practical, but also looks high-quality.

Model	T5-L1812S
Type of laser tube	Sealed CO2 laser tube(Top brand)
Laser power	200W/300W/450W/600W
Transmission mode	Servo + ball screw(Imported)
CCD Edge positioning	Optional
Maximum speed	20m/min
Processing area	1800 X 1200 mm
Position accuracy	±0.01mm
Power supply	220V,50HZ
Total power consumption	2.5KVA(excluding laser system)
Cooling system	Water chiller（CW-5200.JZ-6000,JZ-6200）
Nuzzle	Double nuzzle
