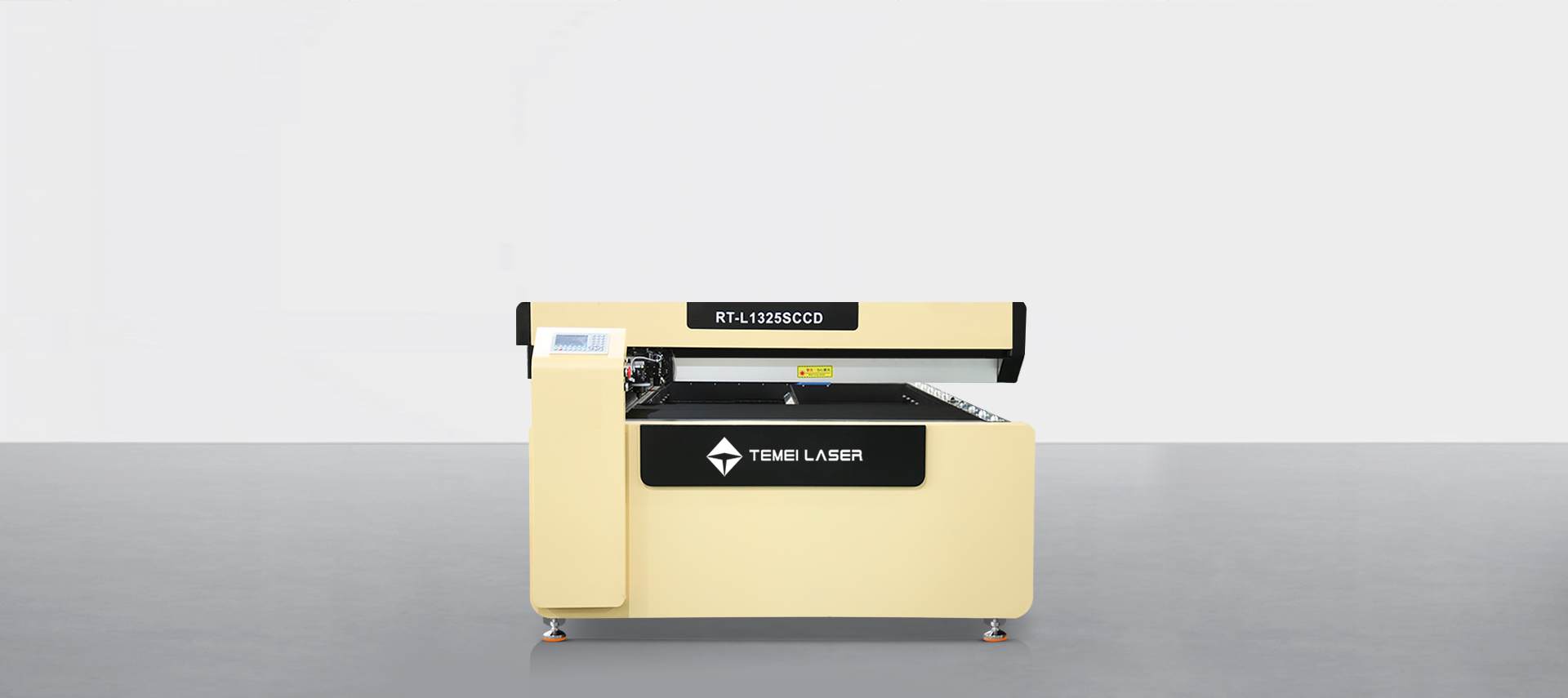

1325 Screw Laser Cutting Machine (OEM-RT)

The cutting surface is smooth and bright,don’t need secondary processing.

Inquire Now

Technical Parameter

ModelT5-L1325S
Type of laser tubeSealed CO2 laser tube(Top brand)
Laser power150W/180W/200W/300W/450W

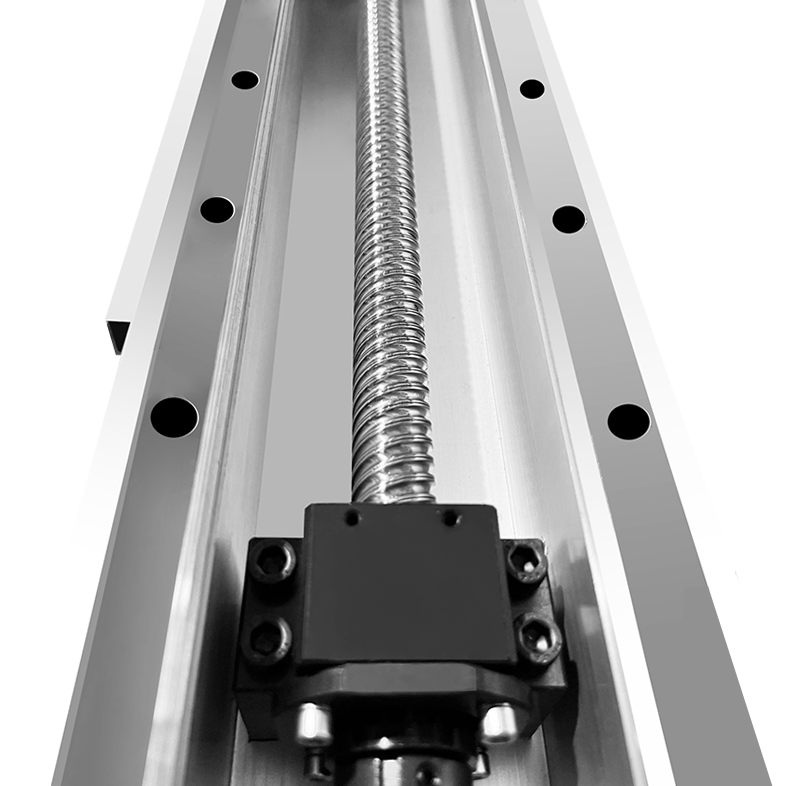

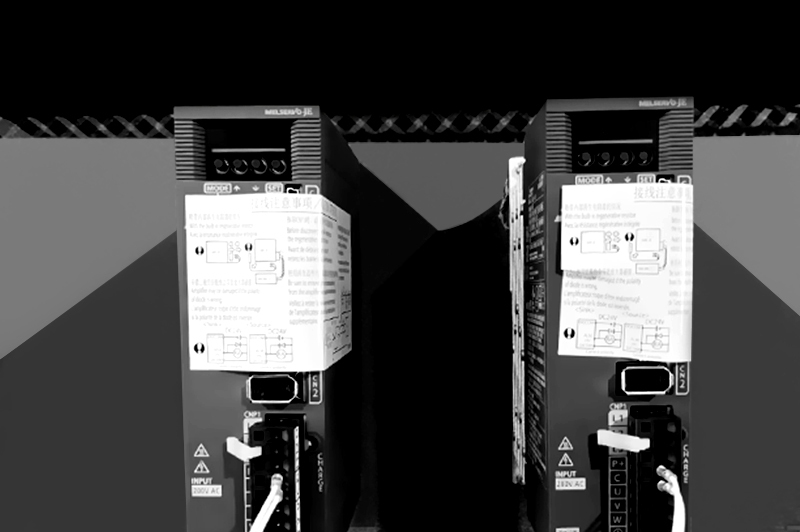

Transmission modeServo + ball screw(Imported)
CCD Edge positioningOptional
Maximum speed20m/min
Processing area1300 X 2500 mm
Position accuracy±0.01mm
Power supply220V,50HZ
Total power consumption2.5KVA(excluding laser system)
Cooling systemWater chiller(CW-5200.JZ-6000,JZ-6200)
Net weight(kg)900kg
Appearance Size3600X1850X1300mm

Application industry
