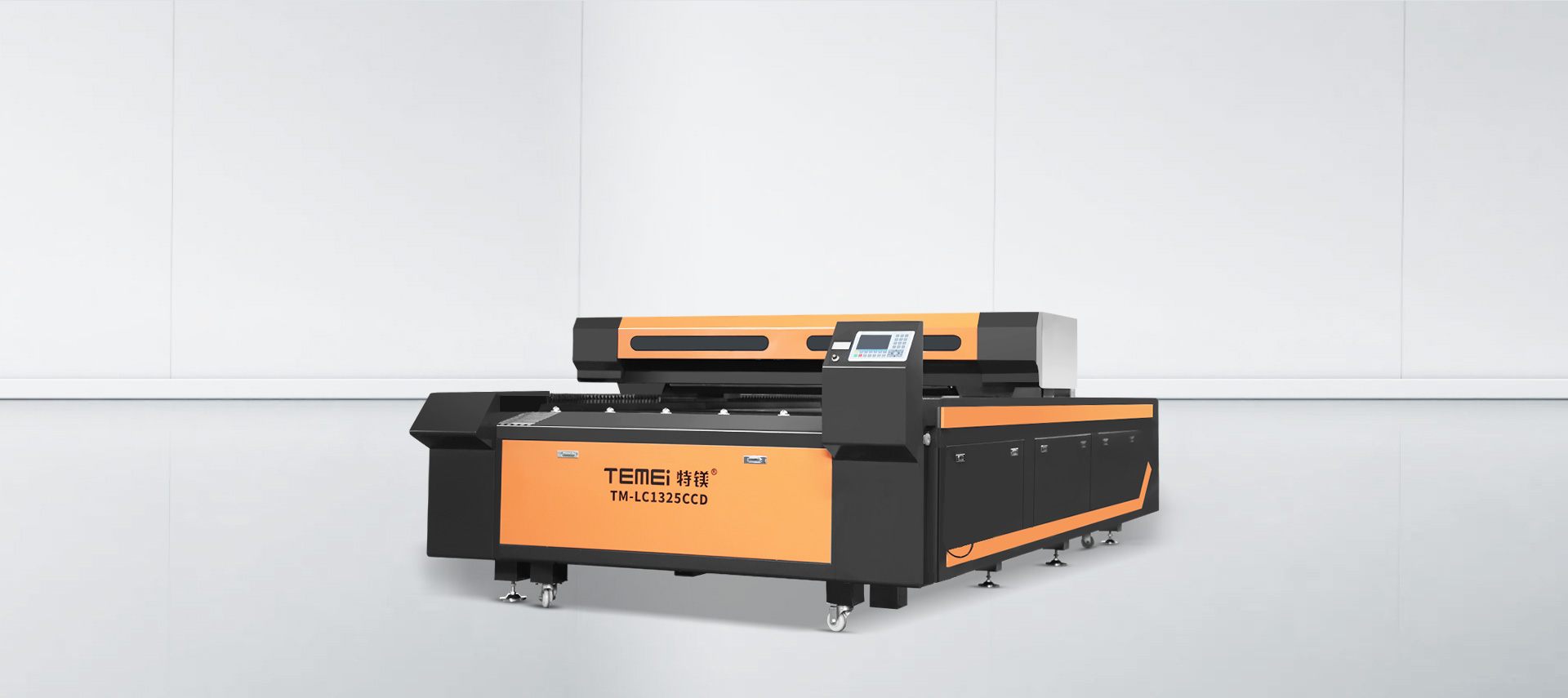

1325 Rack Laser Cutting Machine_Shenzhen TEMEI Machinery & Equipment Co., Ltd.

CO2 Laser Cutting Machine

Inquire Now

Lathe bed

The main body of the square tube is welded and subjected to annealing and tempering to relieve stress.
Y-axis and X-axis

Y-axis steel strip milling flat guide rail surface.
X-axis aluminum profile guide rail surface.
Dual motor dual drive

Double motors on both sides of the Y-axis, dual drive, running smoothly.
Smoking up and down

Smoking in the Longmen area and smoking in the double funnel area.
Fire alarm device

An open flame alarm is triggered during the cutting process.
Fire extinguishing equipment

Detect an open flame, increase the amount of air blowing to extinguish the fire.

Working area	1300*2500mm
Laser power	150W/180W/200W/300W
Moving parts	Import linear guide
Transmission mode	X axis belt + Y axis rack gear/ X axis rack gear +Y axis rack gear(Optional)
Position accuracy	±0.01mm
CCD Edge positioning	Optional
Motor	Stepper Motor/Hybrid Servo+Reducer(optional)
Total power consumption	2.5KVA(excluding laser system)
Laser system	Flight path design
Cooling system	Water Industrial Chiller(CW-5000/JZ-6000)
File Format	DXF 、AI、PLT、DST、DSB
Auxiliary system	Air pump ,blower,smoke absorbing device
Net weight(kg)	900kg
Appearance Size	3600X1900X1300mm
